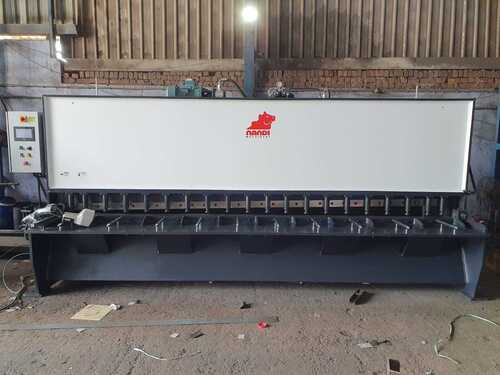

NC Hydraulic Shearing Machine

Name: NC Hydraulic Shearing Machine
Brand: NANDI MACHINERY
Price: 550000.00 INR
Availability: InStock

Price 550000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NC Hydraulic Shearing Machine Specification

Type
Hydraulic Shearing Machine

Material
MS

Computerized
Yes

CNC Or Not
No

Automatic Grade
Semi-Automatic

Control System
PLC Control

Cutting Thickness
2mm to 25mm Millimeter (mm)

Blade Material
WPS

Voltage
230v Volt (v)

Weight
5000 Kilograms (kg)

Color
Epoxy

Warranty
01 year

NC Hydraulic Shearing Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedabad

Supply Ability
05 Pieces Per Month

Delivery Time
3 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
WOODEN BOX

Main Domestic Market
All India

Certifications
MSME

About NC Hydraulic Shearing Machine

Leveraging the rich industrial experience, we present an extensive range of NC Hydraulic Shearing Machine. This machine is precisely manufactured using premium quality materials in accordance to the set industry norms. It is broadly utilized to remove the metal part on the account of pressure which is known as shearing. The NC Hydraulic Shearing Machine is available in numerous sizes and specifications.

NC Hydraulic Shearing Machine

NC Hydraulic Shearing Machine has all the advantages of hydraulic shearing machine (Semi-Automatic). The NC controller adds some more special advantage to machine.

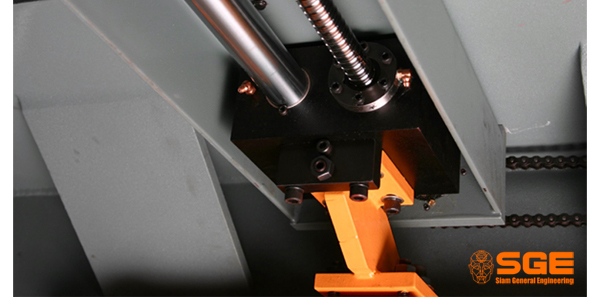

The fast and accurate multi position back gauge system is very efficient and accurate. The machine productivity and accuracy are much improved with NC controlled back gauge

Range: Shearing Thickness : 02mm to 25 mm
Shearing Length: 1500mm to 7000mm

Technical Features:

Shearing Length: 1500/2000/2500/3000/4000/5000/6000 mm
Shear Material: MS / SS / ALUMINIUM / BRASS / COPPER
Accuracy: 0.1mm / Meter
Thickness: Up to 4mm / 6mm / 8mm / 10mm / 12mm / 16mm / 20mm
Back Gauge Length: 600mm / 1000mm and as Per Requirement.

Product Features:

Accurate clearance adjustment of both blades for BURS FREE shears.
Manually/Motorized Back gauge for easy adjustment of shearing length.
Adjustable Pressure Relief/Controlling Valve for HT material.
Extra powerful clamping force by Holding Cylinders.
Flexible sheet support for longer and heavier plates/sheets.
Emergency stop Push switch.
Adjustable strokes for short pieces shears.
Better cutting accuracy in thin sheets at lower rake angle.
Higher cutting capacity at maximum rake angle and Automatic Rake angle adjustment.
Low noise & smooth operation gives higher efficiency of operator

Standard Accessories Including With Machine:

Pair of Blades installed with machine
Flexible sheet support for longer and heavier plates/sheets.
Majoring scale for smaller pieces at front
Foot switch for easier operation
Safety Finger guard.

Precision Cutting Performance

Our NC Hydraulic Shearing Machine is built for reliable performance in cutting mild steel sheets. With cutting thickness capabilities ranging from 2mm to 25mm, it handles a wide variety of tasks, making it ideal for diverse industrial applications. The WPS blade material ensures crisp, accurate cuts every time.

Advanced Control Features

Equipped with a PLC-based control system and computerized functions, this semi-automatic shearing machine balances efficient manual oversight with precise automation. Its user-friendly interface allows for straightforward operation by skilled personnel, ensuring both safety and productivity in your facility.

Durable and Low-Maintenance Design

Crafted from quality materials and finished with epoxy paint, this machine resists wear and corrosion. The hydraulic mechanism and robust construction mean it can withstand continuous industrial use, while the one-year warranty provides peace of mind for your investment.

FAQ's of NC Hydraulic Shearing Machine:

Q: How does the NC Hydraulic Shearing Machine operate?

A: The machine operates using a hydraulic system controlled by a PLC interface. Operators can easily set parameters through its computerized panel to achieve precise, repeatable cuts on mild steel sheets between 2mm and 25mm thick.

Q: What materials can this shearing machine cut?

A: It is specifically designed for cutting mild steel (MS) sheets. The robust WPS blade ensures clean and accurate shearing for thicknesses ranging from 2mm up to 25mm.

Q: When should I schedule maintenance for this machine?

A: Regular maintenance should be performed according to the manufacturer's guidelines, typically after every 500 hours of operation or quarterly, to ensure optimal performance and prolong the machine's lifespan.

Q: Where can I install and use this shearing machine?

A: This equipment is suitable for installation in industrial workshops, fabrication plants, and manufacturing units. Its 230v single-phase voltage and compact design make it adaptable to various site requirements.

Q: What is the process for adjusting the cutting thickness?

A: Cutting thickness is adjusted via the PLC control panel, where users input the required thickness within the range of 2mm to 25mm. This allows for easy customization and consistent results across different jobs.

Q: How does using this shearing machine benefit my business?

A: Utilizing this hydraulic shearing machine increases productivity, ensures precise and consistent cuts, reduces material waste, and enhances workplace safety due to its semi-automatic and computerized control features.
