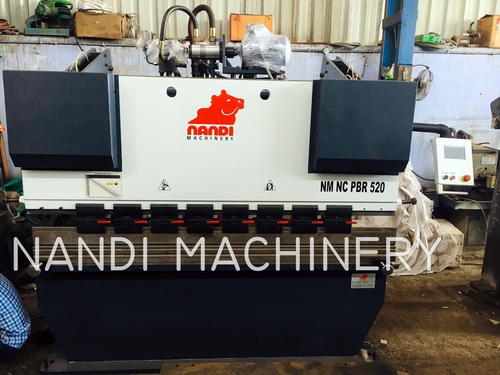

NC Hydraulic Press Brake Machine

Name: NC Hydraulic Press Brake Machine
Brand: NANDI MACHINERY
Price: 800000.00 INR
Availability: InStock

Price 800000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NC Hydraulic Press Brake Machine Specification

Sheet Size
Up to 8 mm thickness

Application
Sheet Metal Bending

Features
Programmable NC control, sturdy construction, low maintenance

Strokes Per Min
6-10

Voltage
415 V

Frequency
50 Hz

Bending Strength
Up to 130 tons

Motor Power
7.5 HP

Automation Grade
Semi-Automatic

Cutting Size
Up to 3200 mm

Stroke Length
120 mm

Usage
Sheet Metal fabrication

Size
All Size

Material
Mild Steel

Product Type
NC Hydraulic Press Brake Machine

Weight
5000 Kilograms (kg)

Accuracy
0.02 mm

Color
Epoxy paint

Back Gauge Range
600 mm

Safety Features
Emergency stop, overload protection, safety guard

Open Height
350 mm

Frame Type
Monoblock welded steel

Control System
NC programmable controller

Working Speed
8 mm/sec

Table Width
220 mm

Oil Tank Capacity
180 liters

NC Hydraulic Press Brake Machine Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedabad

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Pieces Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Wooden

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
msme

About NC Hydraulic Press Brake Machine

The NC Hydraulic Press Brake Machine is fabricated by making use of premium grade raw materials with the help of cutting edge technologies in order to ensure its supreme quality standards. It operates at high speed and delivers maximum accuracy in working. The NC Hydraulic Press Brake Machine is extremely resistant to corrosion and allows simple installation. Also, t serves a durable life span of minimum maintenance requirements. This machine is available for sale in various specifications as per demands at economical price range.

NC Press Brake Machine

NC System for X-Axis or X & Y-Axis
Cybelec 8P & Delem Controller.
Ball screw Backguage & Servo motor.
Timing Belt Pully System.
Finger Guard.

Advantages of NC System:

8 Touch screen Press brake controller from CYBELEC Switzerland.
Quick changeover for sample production & mass production.
High-speed back gauge movement by AC servo drive.
Programmable angle correction & back gauge correction.
User friendly Colour Touch screen for easy programming.
Two axis automatic control bending degree (Y Axis) & back gauge (X-Axis) program.
Multiple bends with different back gauge positions can be programmed.
200 programs & 24 bends with individual back gauge positions in one program.
Different 50 punches and Dies can be stored.
The back gauge repeated position accuracy within 0.1mm.

Standard Accessories Including Machine:

NC Control System installed in machine
Pair of Blade & Block installed with machine.
Operator Console & Foot switch for easier operation.
Centrally Lubrication System installed in Machine
Flexible sheet support for longer and heavier plates/sheets.

Advanced Programmable Control

Manage operations efficiently with the NC controller, enabling precise adjustments and repeatable bending processes. The programmable system ensures consistent results across batches, streamlining the setup for various fabrication needs while enhancing overall productivity.

Robust and Durable Construction

Manufactured from mild steel with a monoblock welded frame, this hydraulic press brake is built to withstand heavy-duty use. Its ergonomic design, large oil tank capacity, and sturdy table construction provide stability and long-lasting performance in fabrication workshops.

Safety and Efficiency Assured

Operator safety is prioritized with integrated features such as emergency stop, safety guards, and overload protection. Alongside these, the semi-automatic setup allows for efficient bending speeds and reliable performance, making it ideal for high-volume sheet metal applications.

FAQ's of NC Hydraulic Press Brake Machine:

Q: How does the NC Hydraulic Press Brake Machine improve sheet metal bending accuracy?

A: The NC Hydraulic Press Brake Machine features a programmable controller that enables precise positioning and consistent repetition, delivering bending accuracy up to 0.02 mm. This level of precision is ideal for fabrication work requiring exact specifications.

Q: What is the maximum sheet size and thickness the machine can handle?

A: This machine can accommodate sheet sizes up to 3200 mm in length and 8 mm in thickness, making it suitable for a wide range of sheet metal fabrication projects.

Q: When should emergency safety features be engaged on the press brake?

A: Emergency safety features such as the emergency stop, safety guards, and overload protection should be activated immediately in any situation where operator safety is at risk or machine performance is compromised.

Q: Where is the NC Hydraulic Press Brake Machine commonly used?

A: The machine is widely used in sheet metal fabrication facilities, manufacturing units, and metalworking workshops throughout India and internationally, due to its reliable performance and adaptability.

Q: What is the process for programming the NC controller?

A: Programming the NC controller involves inputting bending parameters such as angle, back gauge position, and stroke length. The system retains these settings, allowing operators to recall them for repeating jobs, thus ensuring high accuracy and productivity.

Q: How does the machine benefit fabrication processes?

A: By offering programmable back gauge control, robust construction, and integrated safety devices, the machine enhances productivity, ensures consistent bending quality, and minimizes maintenance requirements, ultimately reducing downtime.

Q: Is the machine suitable for different sheet metal materials?

A: Yes, although primarily designed for mild steel, the robust design and adjustable parameters allow the machine to process various sheet metals, provided the material thickness and size are within specified limits.
